AOUASTAR HORIZONTAL VENTING POWER VENT PACKAGE
Product description: The AquaStar Power Vent Kit Is specially
manufactured by Tjernlund Products, Inc. The Kit Is designed to allow horizontal
venting and direct termination on an outside wall. A gas pressure sensor switch turns on
the vent fan as soon as the AquaStars burners activate. The blower fan exhausts flue gases
to the outside. The fan accepts 4 inch vent pipe. The vent pipe connectors on the
AquaStar's are 4 inch for the model 80, 5 Inch for the model 125 and 6 inch for the model
170. A step down adapter must be used to make the transition. Vent piping between the
AquaStar and the fan unit can be either 4 inch or the same as is on the top of the
specific model AquaStar being vented. The Kit can vent up to 100' horizontally with
a single elbow. Subtract 10' for each additional elbow.
For safety, the Kit includes alinear spillage sensor switch to shut off all gas to the
heater should the flue gases fail to vent for any reason. Control circuitry between the
gas flow sensor and the fan unit are at 24 volts. The Vent Kit components are UL approved.
The AquaStar is AGA approved.
The Power Vent spillage sensor switch will not work on an AquaStar 170 with a High
Temperature Harness. This configuration requires a separate 24 volt solenoid gas switch
before the heater. Send email for specifications.
AQ1 Power Vent Package (For Model 80/125)
- Spillage switch with mounting bracket post
- Vent Hood Kit with mounting parts
- Vibration mount package
- Gas Pressure switch with fittings
- Blower motor, 24 volt control, 25 foot cord.
- Installation instructions
. |
AQ2 Power Vent Package (For Model 170)
- Same as AQ1 but also includes purge timer.
|
|

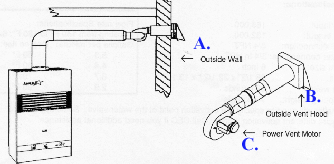

A. Outside
Wall
B. Outside Vent Hood
C. Power Vent Motor |
|
